Solar Boiler and buffer tank

(1).Construction: Welded steel structure.

(2).Containment: High temperature membrane liner. Rating 212 F continuous. All penetrations in and out of the tank from the top, except for the overflow.

(3).Insulation: 50mm polyurethane foaming, superior heat preservation

(4). SUS3042B Food Grade Stainless Steel inner tank, superior water quality

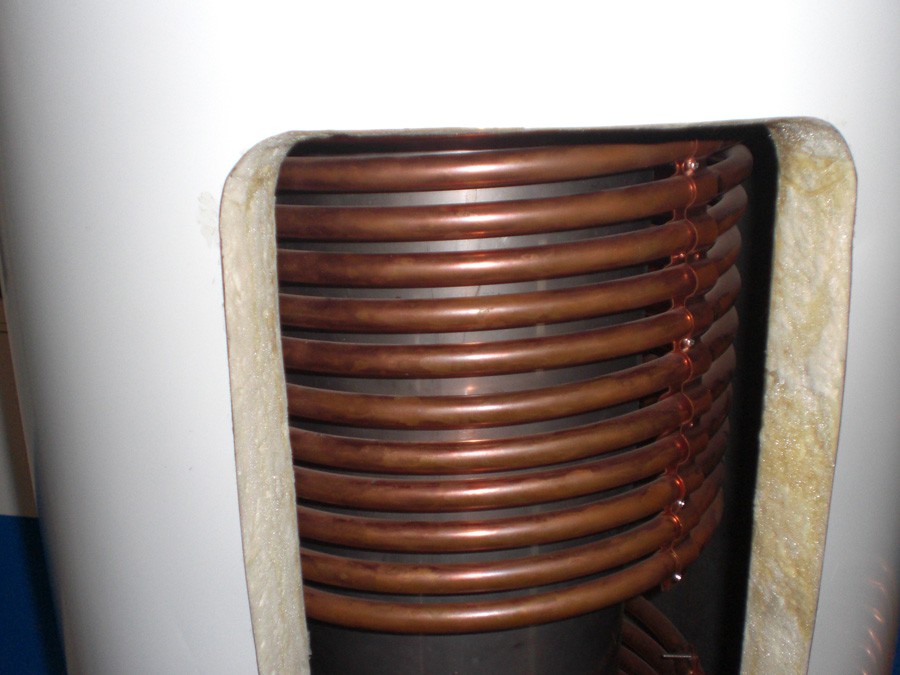

(5).Corrosion inhibitor is added to the inside of the tank to protect the exterior of copper heat exchangers.

(6).Designs for Open or closed loop systems.

Capacity: 100L

Tank diameter: ￠385 mm

Foam Thickness: 45 mm

Glycol Inet/Outlet: G3/4

Water Inet/Outlet: G3/4

Dimension: Ø480*1040

Packing Size: 520*520*1100 mm

Capacity: 150L

Tank diameter: ￠385 mm

Foam Thickness: 45 mm

Glycol Inet/Outlet: G3/4

Water Inet/Outlet: G3/4

Dimension: Ø480*1470

Packing Size: 520*520*1530 mm

Capacity: 200L

Tank diameter: ￠440 mm

Foam Thickness: 50 mm

Glycol Inet/Outlet: G3/4

Water Inet/Outlet: G3/4

Dimension: Ø540*1500

Packing Size: 580*580*1550 mm

Capacity: 250L

Diameter (Inner /Outshell): ￠480 /￠570 mm

Foam Thickness: 45 mm

Glycol Inet/Outlet: G3/4

Water Inet/Outlet: G3/4

Dimension: Ø570*1560

Packing Size: 610*610*1620 mm

Capacity: 300L

Diameter (Inner /Outshell): ￠480 /￠570 mm

Foam Thickness: 45 mm

Glycol Inet/Outlet: G3/4

Water Inet/Outlet: G3/4

Dimension: Ø570*1840

Packing Size: 610*610*1900 mm

Capacity: 400L

Diameter (Inner /Outshell): ￠600 /￠700 mm

Foam Thickness: 50 mm

Glycol Inet/Outlet: G3/4

Water Inet/Outlet: G3/4

Dimension: Ø700*1580

Packing Size: 740*740*1640 mm

Capacity: 500L

Diameter (Inner /Outshell): ￠600 /￠700 mm

Foam Thickness: 50 mm

Glycol Inet/Outlet: G3/4

Water Inet/Outlet: G3/4

Dimension: Ø700*1930

Packing Size: 740*740*1990 mm

***  The magnesium protection,P/T Relieve Ealve,Heating Element,Draindown Valve are all inside ***

*** Material:Inner Tank made by Stainless Steel,Out tank are Galvanized Steel ***
