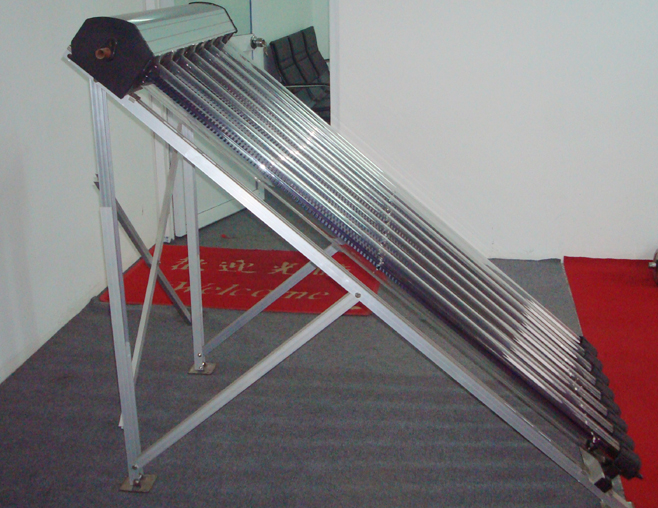

Type:High pressure Metal Heat Pipe Collector
Color:Aluminum alloy painted

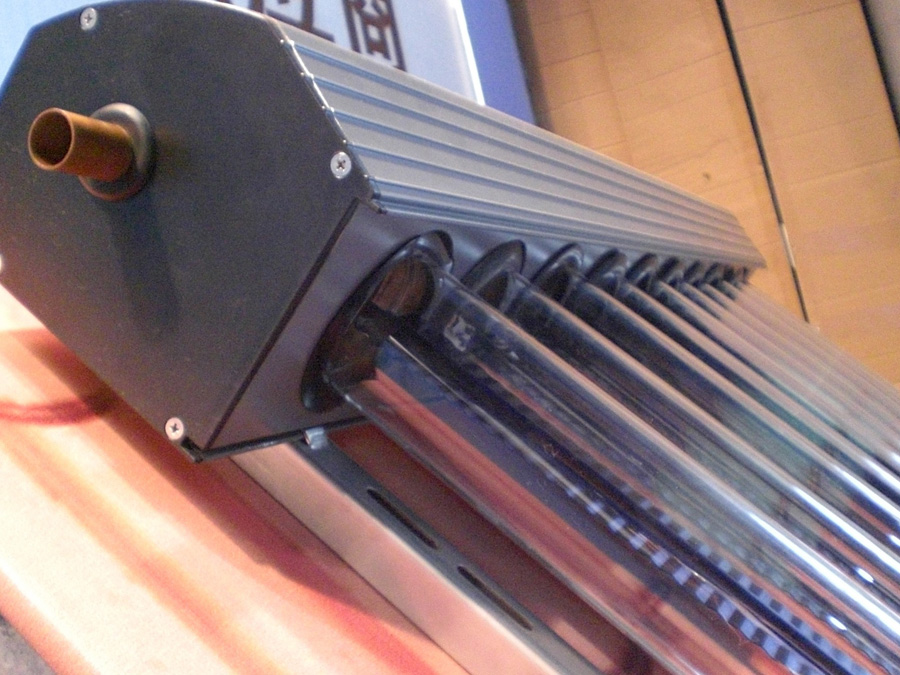

Manifold materials:Copper
Bracket:Aluminum alloy
Working angle against sun:27~38 Deg.
Working pressure:6.0 bar
Working temperature:-25~99°C
Certificate:CE,ISO9001,Solar-Keymarket
Guarantee:25 years
| Introduction |
In the heat-tube the high heat-conductive heat-tube type core,shaped aluminum heat-absorbing sheet,high-B-Si glass,magneric-controlled sputtered selective absorption coating and medium-temperature hot press and sealing of metal are adopted.
About more Metal Heat Pipe Tube details please click here
| Specifications |
Tube dimension:diameter 70mm,length 1700mm
Condenser dimension:diameter14mm/20mm optional,length 75mm
Vacuum date:<10-5MPa
Absorntion effieiency:≥96%
Emission:<4%
Absorptive coating:AL/N/O selctive
Absorb material:Aluminum,0.6mm thickness
Glass materials:Thick Borosilicate Glass
Stagnation temperaturer:-45℃
Wind resistance:130m/s
Net. weight:2.6kg
Hot water outat average 65℃:12L/day
| Products list |

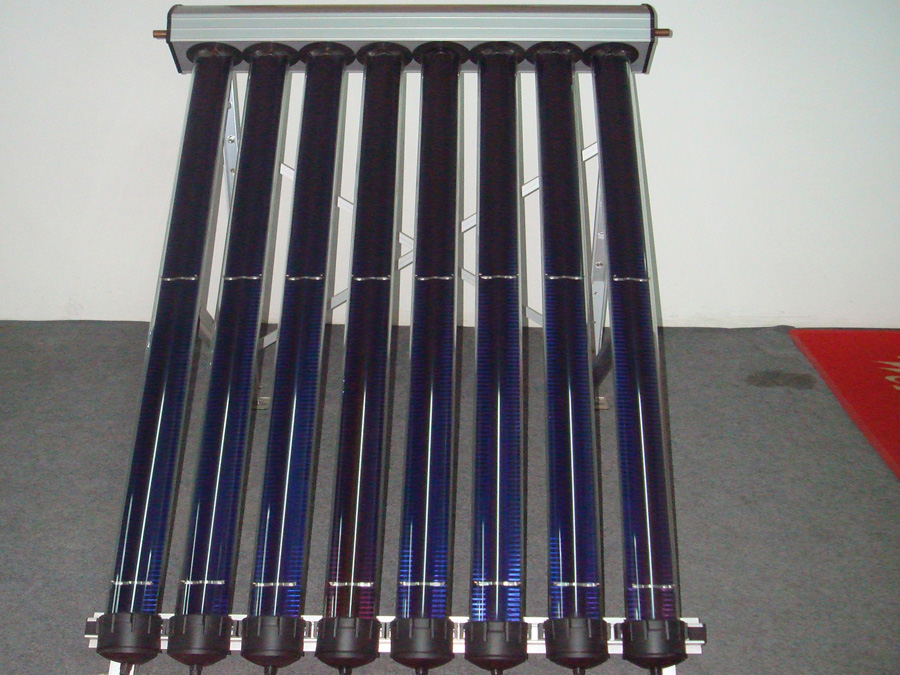

| Model : CUCMP70/8 |
Daily hot water out:100L
Metal Glass Tube:70*1700mm
Tubes quantity:8 pcs
Per unit package:0.20CBM,340KG
20/40G/40H container load:140/280/335 pcs
| Model : CUCMP70/10 |
Daily hot water out:120L
Metal Glass Tube:70*1700mm
Tubes quantity:10 pcs
Per unit package:0.21CBM,34KG
20/40G/40H container load:127/255/322 pcs
| Model : CUCMP70/15 |
Daily hot water out:180L
Metal Glass Tube:70*1700mm
Tubes quantity:15 pcs
Per unit package:0.26CBM,50KG
20/40G/40H container load:102/204/257 pcs
*** We can make any quantity tubes as your offer ***
