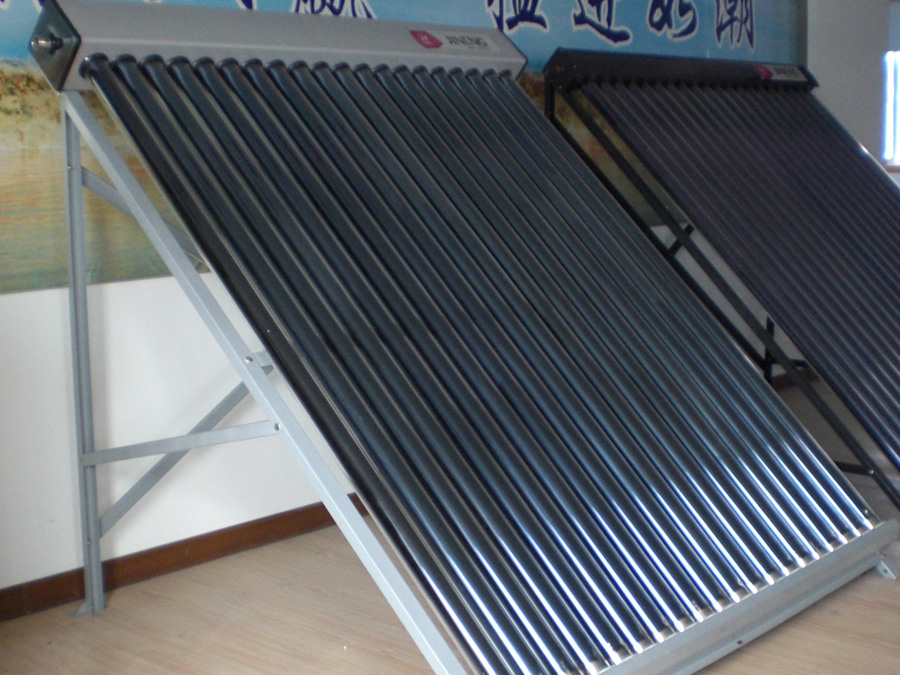

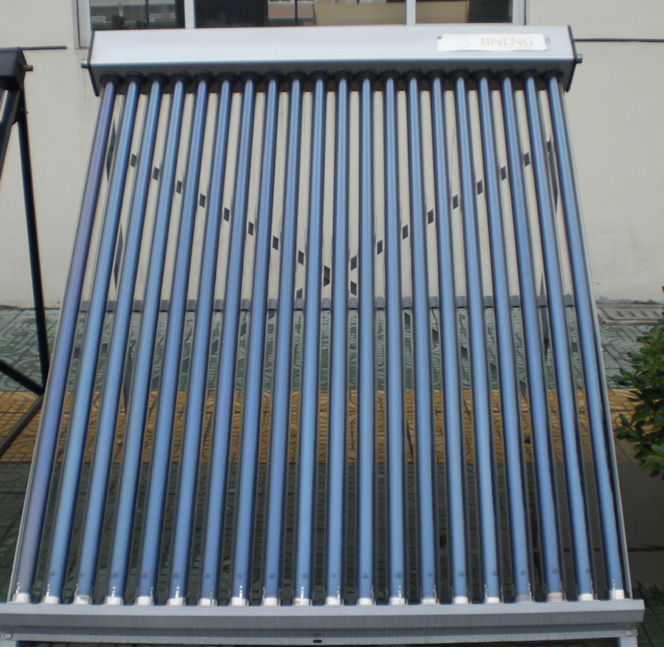

Manifold Solar Collector

Type:Low pressure vacuum tube Manifold Solar Collector
Color:Stainless steel
Manifold materials:SUS3042B
Bracket:Galvanized or Stainless steel
Working angle against sun:27~38 Deg.
Working pressure:2.0 bar
Working temperature:0~99°C
Certificate:CE,ISO9001
Guarantee:15 years

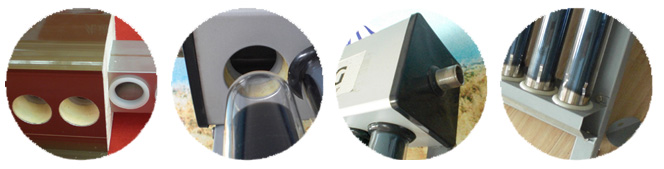

Introduction

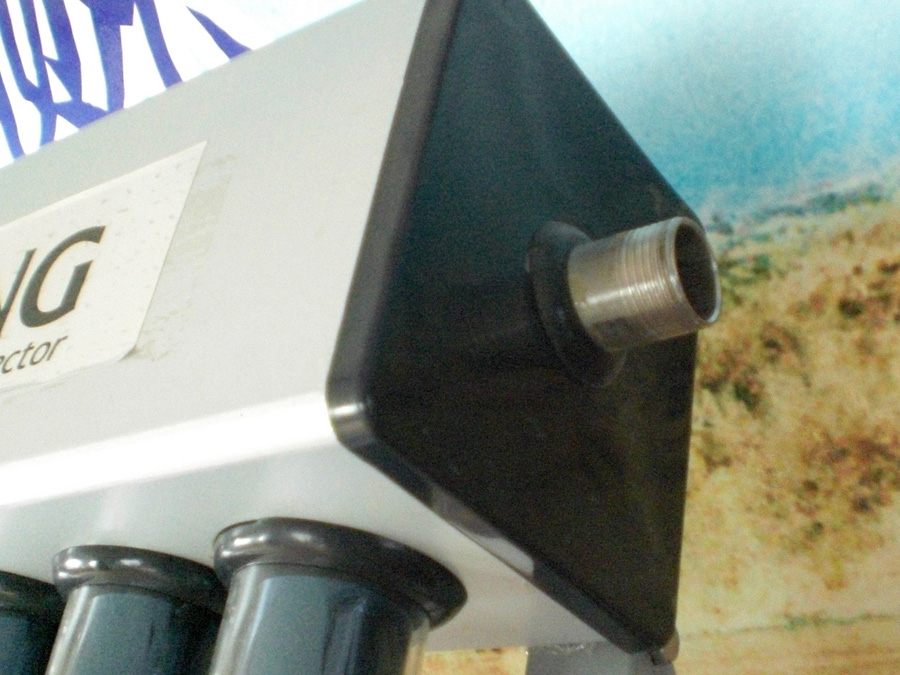

1).Inner manifold : stainless steel SUS304-2B

2).Outer manifold: stainless steel SUS304-2B

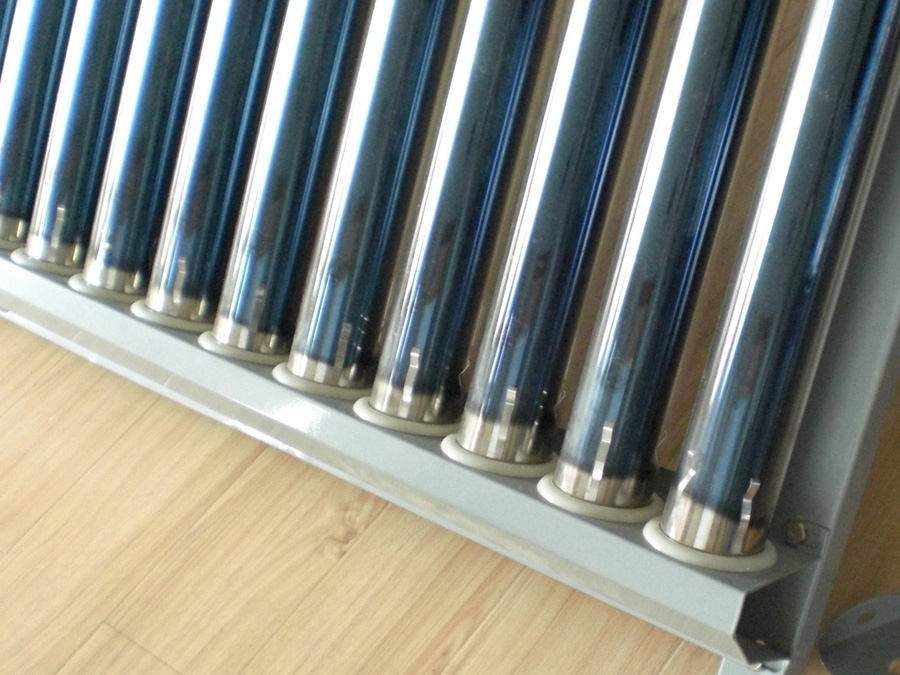

3).Glass tube dimensions: 47mm x 1.5m and 58mm x 1.8m,Resist 25mm hail

4).Heat-preservation layer : by polyurethane,thickness 40mm

5).Bracket:Stainless steel ,thickness 1.2mm



Detailed Product Description

1).Working principle of high pressure solar heater: utilizes the alternative absorption coating on the inner surface of the vacuum tube, from the high-temperature environment super-conduction tubes, leads the heat to the water tank, and produces hot water

2).Easy to use, also convenient to install

3).Can be put in the courtyard, on the roof or balcony

4).Inlet water hole connects to the tap water, and the outlet hole connects to the tap water, and the outlet hole produces pressure hot water directly

5).Working principle of low pressure solar heater: adopts the alternative absorption coating to absorb the solar energy, heat the water in the vacuum tube directly, through the cold hot water convection, changes the solar energy into heat energy to store in the water tank
