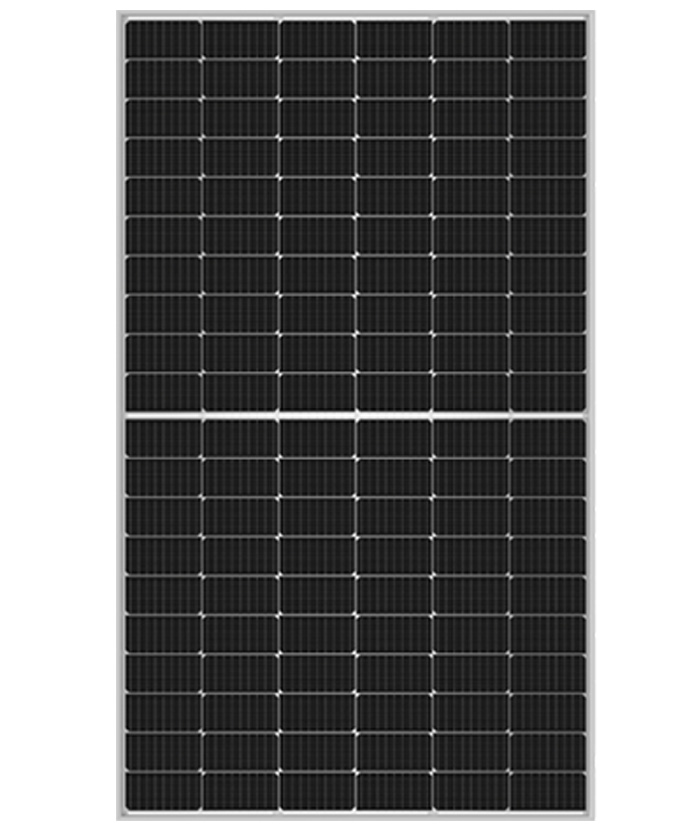

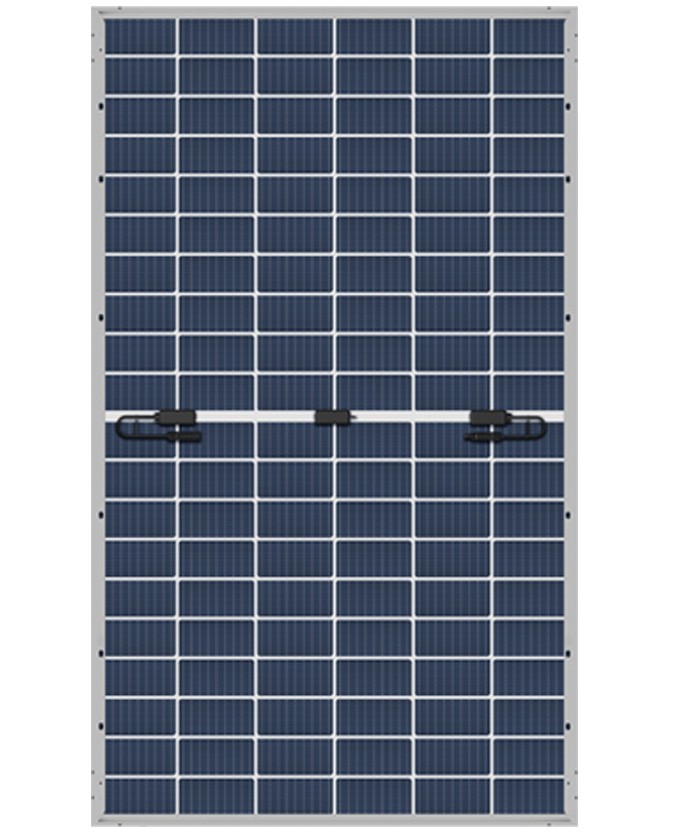

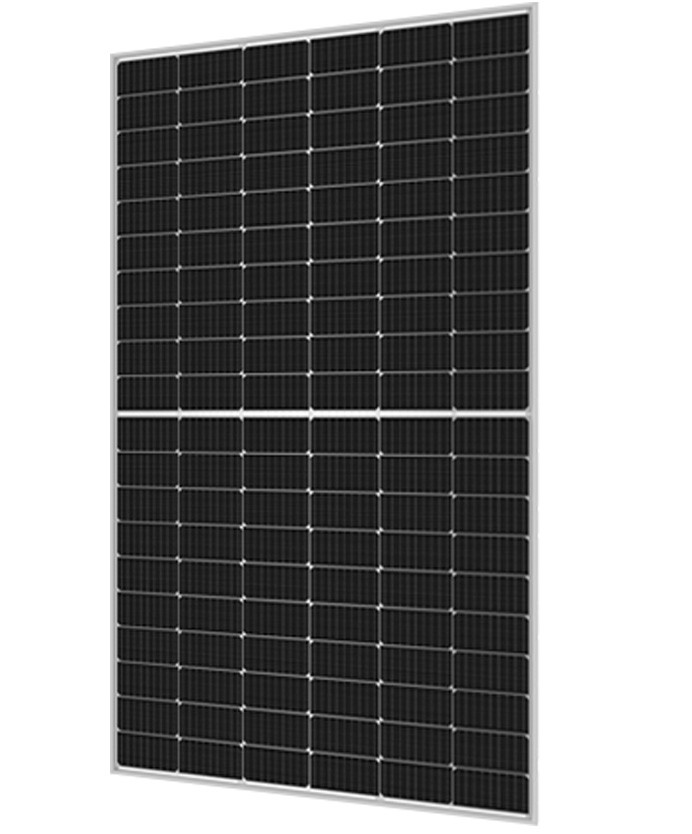

MBB Half Cell panel 360W-380W

Cell Type:Mono Crystalline 166x83mm
Number Of Cells:120(6x20)
Dimensions(AxBxC):1765x1048x30mm
Weights:20.5kg
Glass:3.2mm Tempered Low Iron Glass
Aluminium Frame:Anodised Aluminium
Junction Box:Split Junction Box (IP68 )
Connector:Mc4 Compatible
Output Cables:4.0mm²,+300mm,-300mm (Customized Length optional)

MBB Half Cell panel 360W-380W
Introduction

1).IP68 Junction Box and Connector have a high degree of waterproof, effectively resist the harsh environment

2).The junction box carries a current of 15A, ensuring high current flow through the modules

3).Glue-spilled tank has a double-layer waterproof, cross-section with hook-shaped aluminum frame, enhanced by 10% of the mechanical load strength

4).The module refines the current division, thus effectively reducing the loss of up to 2% due to mismatch and increasing the power output of

the system

5).Excellent salt spray resistance, anti-ammonia and anti PID, TUV, SUD certification approved

6).Passed the 2400pa wind load and 5400pa snow load test, ensuring that the module has a stable mechanical life

7).Modules are packaged according to color classification, to achieve consistent appearance after installation

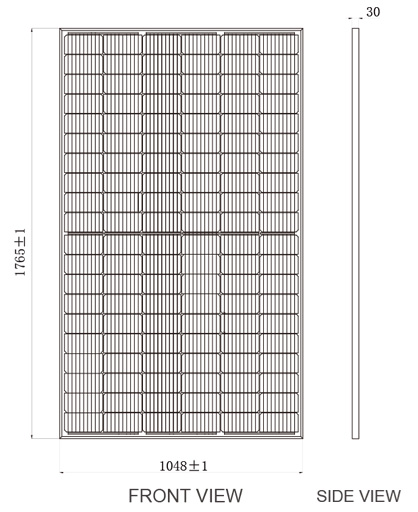

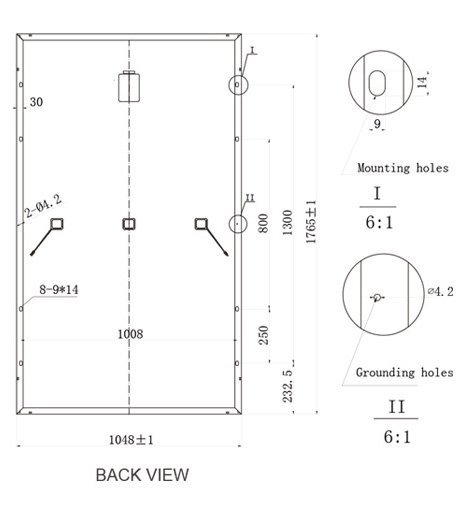

Mechanical Drawings

1-2.jpg 1-3.jpg


Electrical Characteristics
Model:CUPV60M-H-365W
Maximum Power At STC(Pmax)    365W
Short Circuit Current(Isc)    11.16A
Open Circuit Voltage(Voc)    41.1V
Maximum Power Current(Impp)    10.67A
Maximum Power Voltage(Vmpp)    34.2V
Module Efficiency    19.46%
Power Tolerance    0~+5W
STC: 1000W/m2 irradiance, 25°C cell temp., AM1.5.
Model:CUPV60M-H-370W
Maximum Power At STC(Pmax)    370W
Short Circuit Current(Isc)    11.26A
Open Circuit Voltage(Voc)    41.3V
Maximum Power Current(Impp)    10.76A
Maximum Power Voltage(Vmpp)    34.4V
Module Efficiency    20%
Power Tolerance    0~+5W
STC: 1000W/m2 irradiance, 25°C cell temp., AM1.5.
Model:CUPV60M-H-375W
Maximum Power At STC(Pmax)    375W
Short Circuit Current(Isc)    11.34A
Open Circuit Voltage(Voc)    41.5V
Maximum Power Current(Impp)    10.84A
Maximum Power Voltage(Vmpp)    34.6V
Module Efficiency    20.27%
Power Tolerance    0~+5W
STC: 1000W/m2 irradiance, 25°C cell temp., AM1.5.
Model:CUPV60M-H-380W
Maximum Power At STC(Pmax)    380W
Short Circuit Current(Isc)    11.42A
Open Circuit Voltage(Voc)    41.7V
Maximum Power Current(Impp)    10.92A
Maximum Power Voltage(Vmpp)    34.8V
Module Efficiency    20.54%
Power Tolerance    0~+5W
STC:1000W/m2 irradiance, 25°C cell temp., AM1.5.


Packing Configuration
40HP Container
35  pieces on per pallet
24  pallets in per container
840  pieces module in container


Datasheet Download
