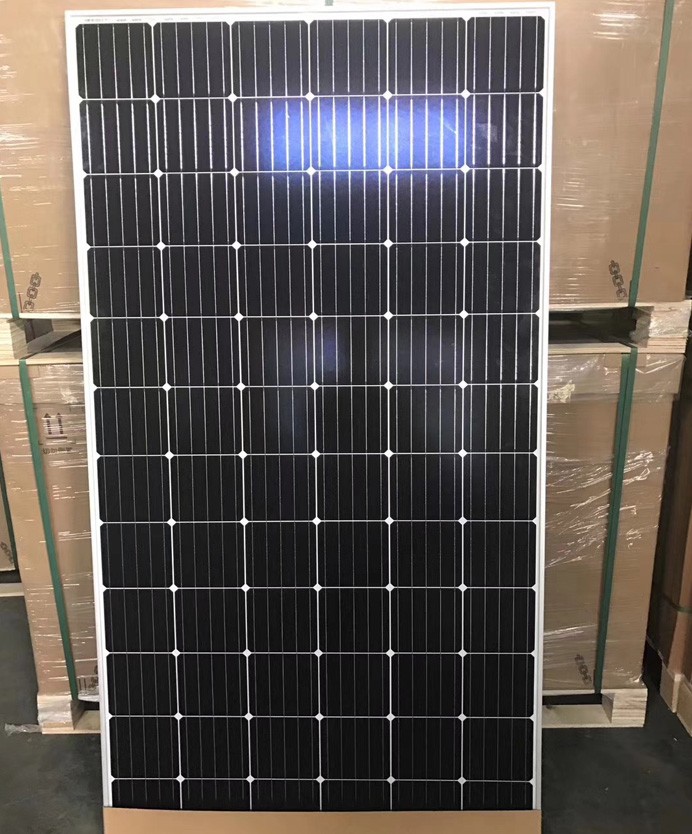

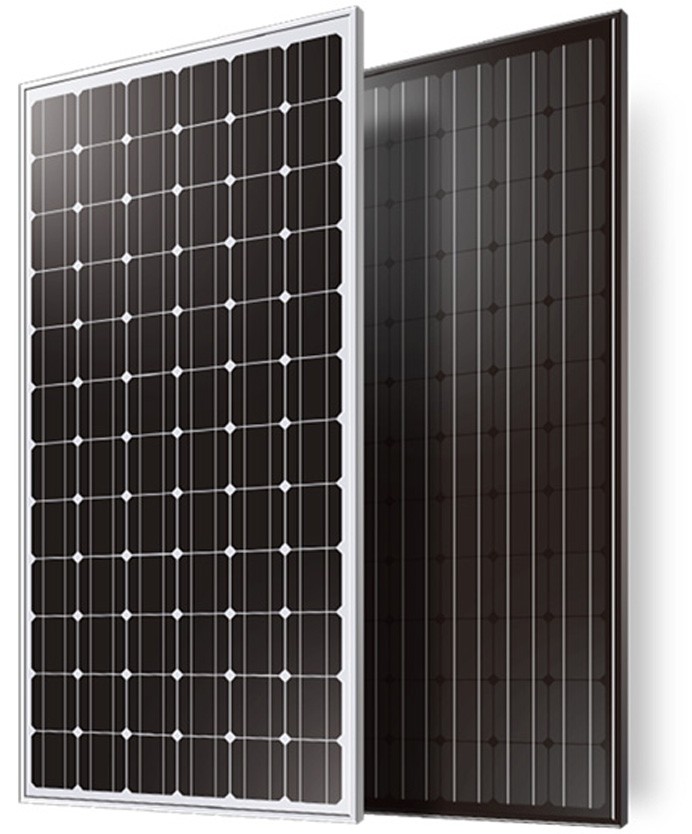

Mono solar panel 72 cells

Type:Mono solar panel 72 cells 345w-360w optional
Cells:Monocrystalline
Qty.of cells per panel:72pcs

Mono solar panel 72 cells 345w-360w
Introduction

1).IP68 Junction Box and Connector have a high degree of waterproof, effectively resist the harsh environment

2).The junction box carries a current of 15A, ensuring high current flow through the modules

3).Glue-spilled tank has a double-layer waterproof, cross-section with hook-shaped aluminum frame, enhanced by 10% of the mechanical load strength

4).The module refines the current division, thus effectively reducing the loss of up to 2% due to mismatch and increasing the power output of

the system

5).Excellent salt spray resistance, anti-ammonia and anti PID, TUV, SUD certification approved

6).Passed the 2400pa wind load and 5400pa snow load test, ensuring that the module has a stable mechanical life

7).Modules are packaged according to color classification, to achieve consistent appearance after installation


Mechanical Drawings

 1607410159176000.png  1607410176536670.png



Mechanical Specifications

Cell Type : Mono Crystalline 156.75x156.75mm

Number Of Cells: 72 pcs(6X12)

Dimensions(AxBxC):1950x990x40

Weights :23 kg

Front Glass :3.2mm Tempered Low Iron Glass

Frame : Clear Anodized Aluminum Alloy

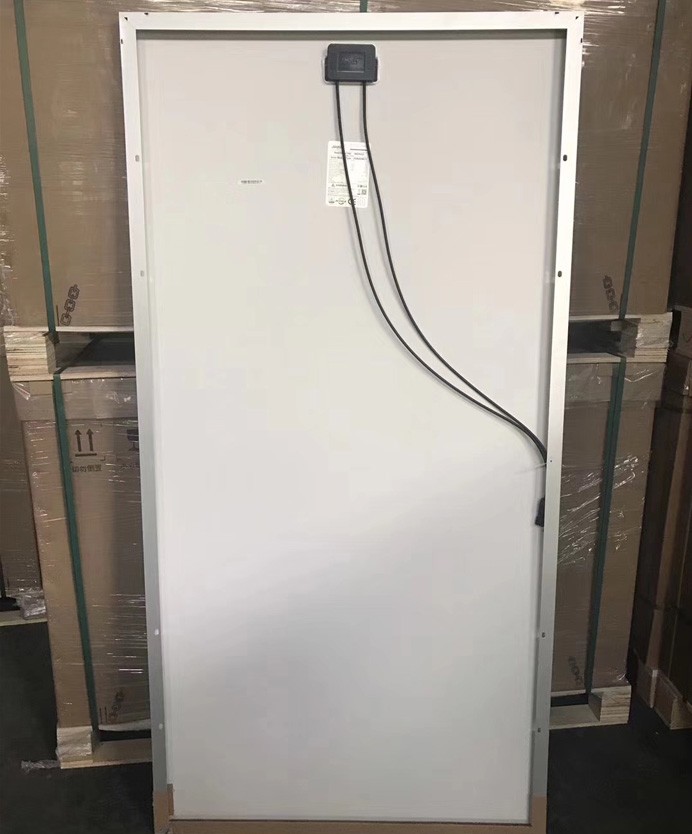

Junction Box : IP68,with Bypass Diodes

Connectors : Mc4 Compatible

Output Cables : Tuv,±length 900mm,4.0mm²


Electrical Characteristics
Model:CUPV-72M-345W
Maximum Power At STC(Pmax)    345W
Short Circuit Current(Isc)    9.35A
Open Circuit Voltage(Voc)    46.9V
Maximum Power Current(Impp)    8.96A
Maximum Power Voltage(Vmpp)    38.5V
Module Efficiency    17.87%
Power Tolerance    0~+3%
STC: 1000W/m2 irradiance, 25°C cell temp., AM1.5.
Model:CUPV-72M-350W
Maximum Power At STC(Pmax)    350W
Short Circuit Current(Isc)    9.53A
Open Circuit Voltage(Voc)    47.5V
Maximum Power Current(Impp)    9.04A
Maximum Power Voltage(Vmpp)    38.7V
Module Efficiency    18.13%
Power Tolerance    0~+3%
STC: 1000W/m2 irradiance, 25°C cell temp., AM1.5.
Model:CUPV-72M-355W
Maximum Power At STC(Pmax)    355W
Short Circuit Current(Isc)    9.65A
Open Circuit Voltage(Voc)    47.7V
Maximum Power Current(Impp)    9.15A
Maximum Power Voltage(Vmpp)    38.8V
Module Efficiency    18.39%
Power Tolerance    0~+3%
STC: 1000W/m2 irradiance, 25°C cell temp., AM1.5.
Model:CUPV-72M-360W
Maximum Power At STC(Pmax)    355W
Short Circuit Current(Isc)    9.75A
Open Circuit Voltage(Voc)    47.9V
Maximum Power Current(Impp)    9.25A
Maximum Power Voltage(Vmpp)    38.9V
Module Efficiency    18.65%
Power Tolerance    0~+3%
STC: 1000W/m2 irradiance, 25°C cell temp., AM1.5.

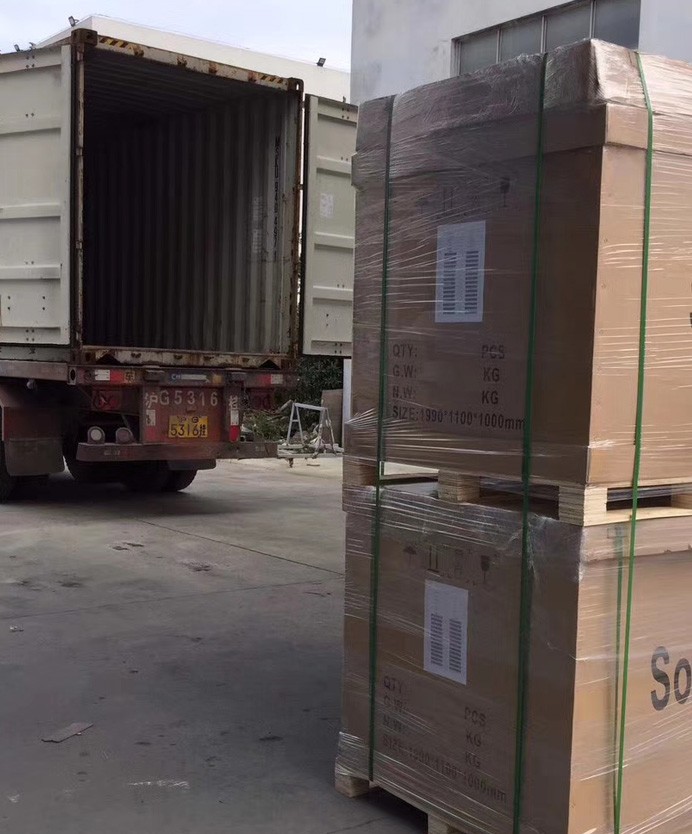

Packing Configuration
20GP Container
27  pieces on per pallet
10  pallets in per container
270  pieces module in container
40HP Container
27  pieces on per pallet
24  pallets in per container
648  pieces module in container
