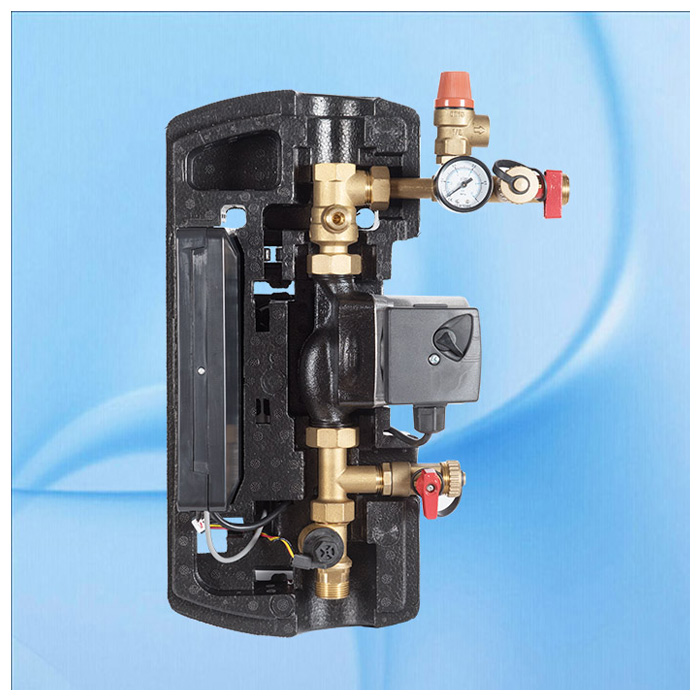

Solar water pump station

Solar water heating system pump station

Suitable for active solar hot water and heating system

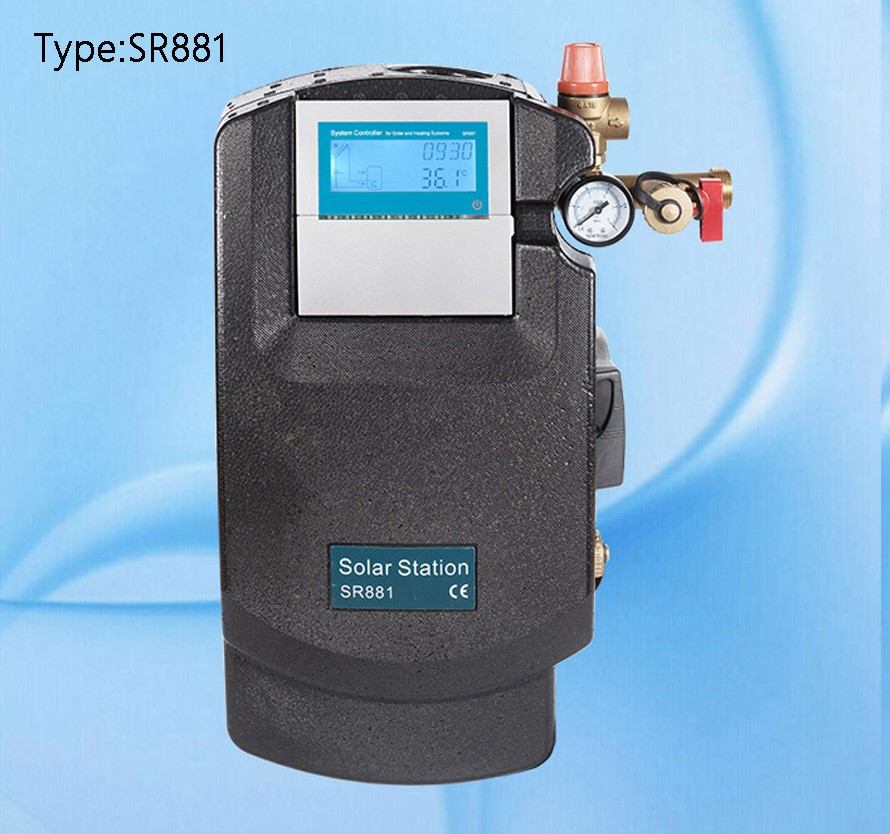

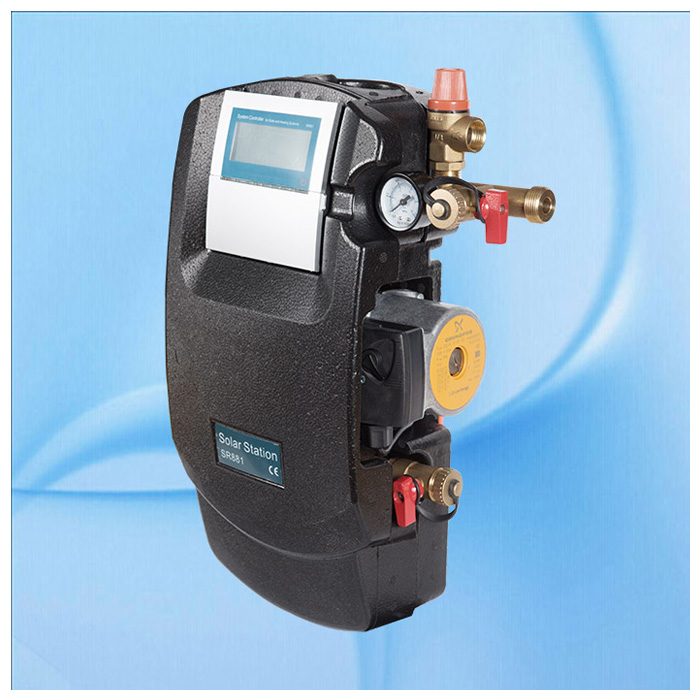

Model:SR881



Introduce

APPLICATIONS CAPACITY

Max.number of collectors:1

Max.number of storage tanks:1

Max.number of relays:2

Max.number of sensors:3

Max.number of application system:1

Main technical data

Diamension:400mm*200mm*145mm

Installation:  wall  mountingalso  suitable  for  mounting  into  patch  panels

Power  supply:200V-240V  AC  or  100V-130V  AC50-60Hz.  .

Power  consumption:  < 3W

Accuracy of temperature measuring: ± 2oC

Range of collector temperature measuring: -10 ~200oC

Range of tank temperature measuring: 0 ~110oC

Suitable power of pump: 2 pumps possible to be connected power of each pump < 200W .

Inputs: 3 sensors

Pt1000 sensor (≤500oC) for collector (silicon cable≤280oC)

NTC10K B3950 sensor (≤ 135oC) for tank (PVC cable ≤105oC)

Outputs:2 relays for circulation pumps or 3-way electromagnetic valve

Ambient temperature:-10oC ~ 50oC.

Water proof grade: IP40.

Mounting: Wall mounting

Operation: 10 push buttons at the front cover.

Accuracy of temperature measuring: ± 0.1oC

Range of collector temperature measuring: -10oC ~220oC

Range of tank temperature measuring: 0oC ~110oC

Suitable power of pump: 3 pump possible to be connected

Suitable power of HK (backup heating):

1pc(1.5KW version) ˂1.5KW

1pc(3KW version) ˂3KW

1pc(4KW version) ˂4KW

Inputs: 5 sensors

1pcs*Pt1000 sensor (≤500oC) for collector (silicon cable≤280oC)

4pcs*NTC10K B3950 sensor (≤ 135oC) for tank (PVC cable ≤105oC)

1*FRT Rotary vane type electron flow meter

Outputs: 4 relays for circulation pump and backup heating

3*Electronmagnetic relay Max.current 2A

HK relay(1.5KW version):10A

HK relay(3KW version):15A

HK relay(4KW version):20A

Ambient temperature: -10oC ~ 50oC.

Water proof grade: IP41

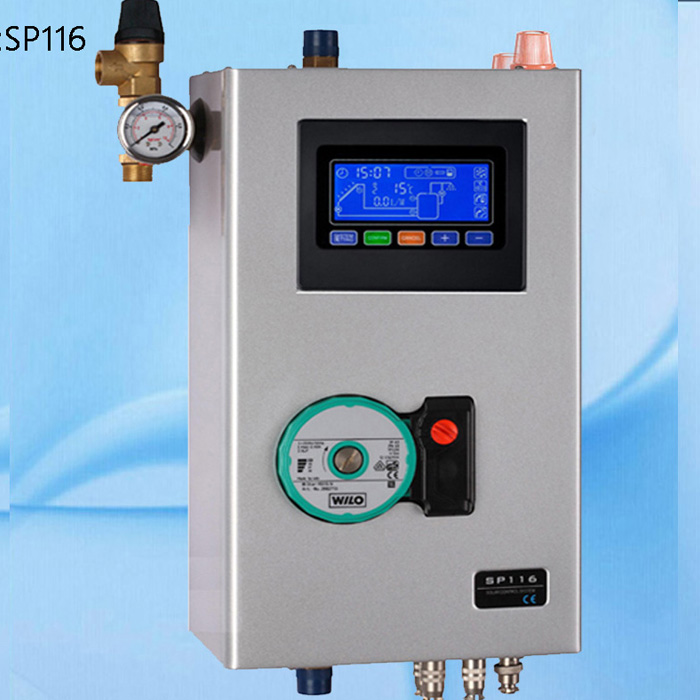

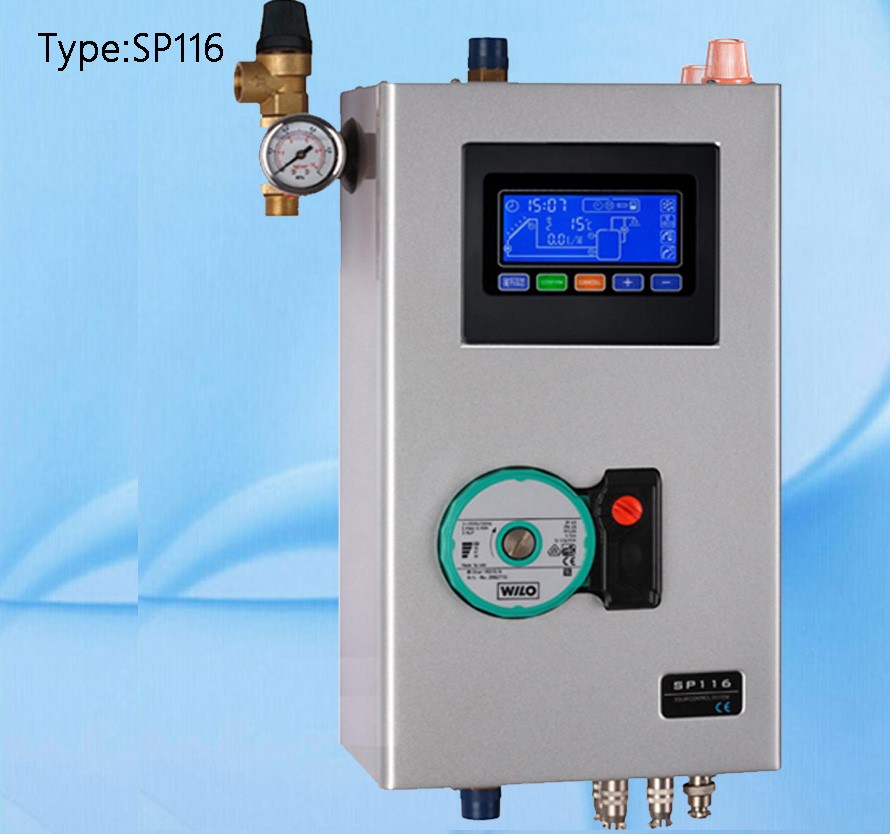

Model:SP116


Main technical data

1.  Dimension: 385×220×135mm

2.  Input voltage: 200V~240V AC or 100V~120V AC

3.  Power: ≤3W

4.  Accuracy of temperature measuring: ±1℃

5.  Range of temperature measuring: PT1000: -99~199℃ NTC10K: 0~99℃

6.  Input signals:

    1 x PT1000 sensor temperature probe ≤500℃, silicon cable ≤280℃;

    3 x NTC10K sensor temperature probe≤135℃, PVC cable ≤105℃

7.  Output signals:

   1 x Auxiliary heating output (Max. load current: 12A)

   2 x Relay output (Max. load current: 1.5A)

8. System design pressure: 1 MPa

9.  Safety valve respond pressure: 0.6 MPa

10.  WILO pump model: RS15/6 or RS25/6 for selection

11.  Screw coupling: 1/2〞

12.  Pipeline Material: Brass

13.  Range of environment temperature: -10~50℃

14.  Water protection grade: IP40

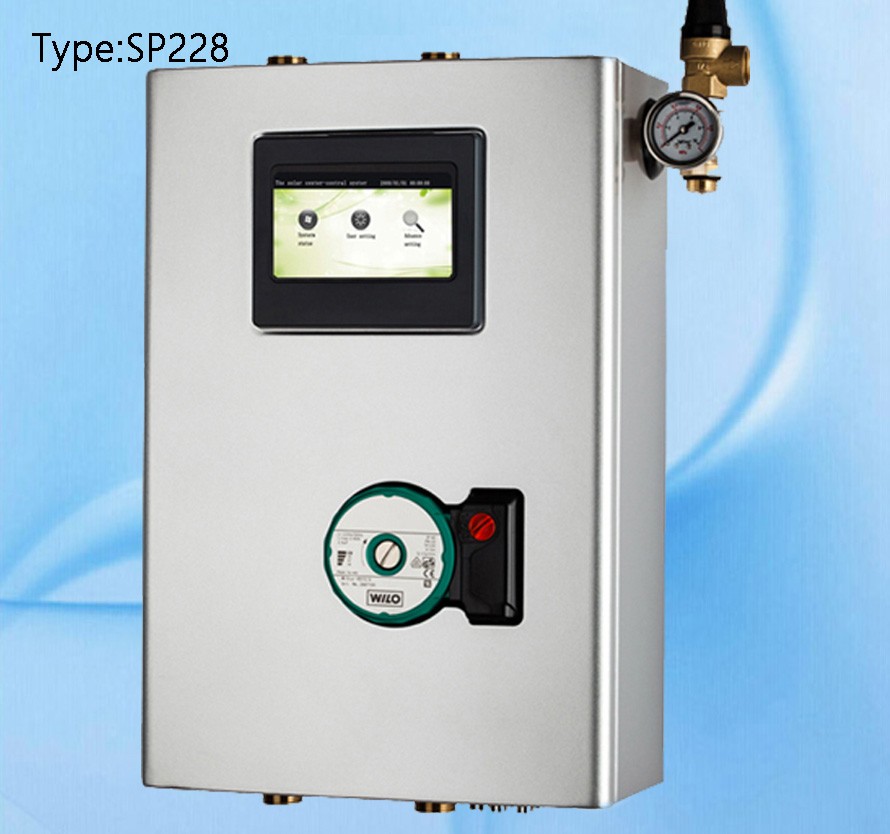

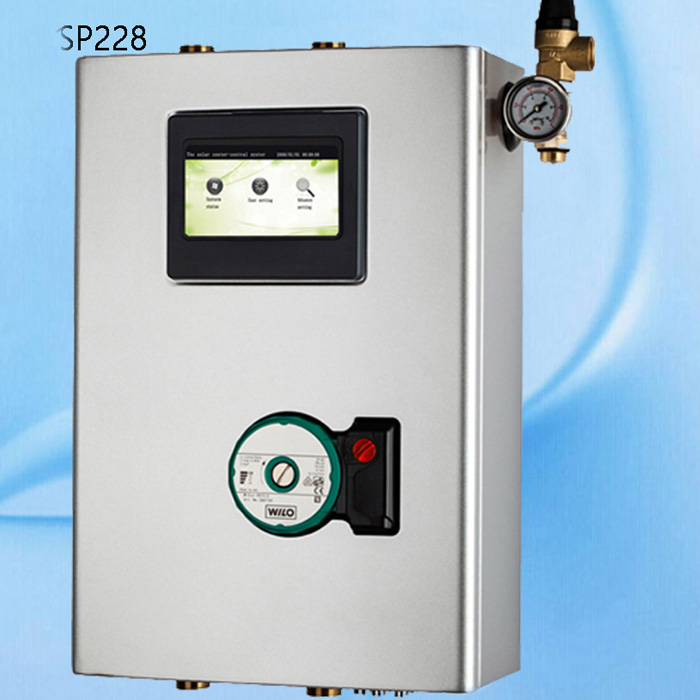

Model:SP228


Main technical data

1.  Dimension: 435×293×140mm

2.  Input voltage: 200V~240V AC or 100V~120V AC

3.  Power: ≤3W

4.  Accuracy of temperature measuring: ±1℃

5.  Range of temperature measuring: PT1000 : 0~199℃ NTC10K: 0~99℃

6.  Input signals:

     2 x PT1000 sensor temperature probe ≤500℃, silicon cable ≤280℃;

    4 x NTC10K sensor temperature probe≤135℃, PVC cable ≤105℃

7.  Output signals:

    1 x Auxiliary heating output (Max. load current: 12A)

    4 x Relay output (Max. load current: 1.5A)

8.  System design pressure: 1 MPa

9.  Safety valve respond pressure: 0.6 MPa

10.  WILO pump model: RS15/6

11.Screw coupling: 3/4〞

12.Pipeline material: Brass

13.  Range of environment temperature: -10~50℃

14.  Water protection grade: IP40
